CN1011/L – LED Obstruction Light
Price on request

Operating Voltage: AC90-260V
Power consumption: 5W
Flashing frequency: constant light
Light intensity: 32cd
Emitting color: RED
Beam angle: 360° horizontal, more than 3° vertical beam spread
Overall size(mm): 36mm×335mm

DOWNLOAD SPEC SHEET

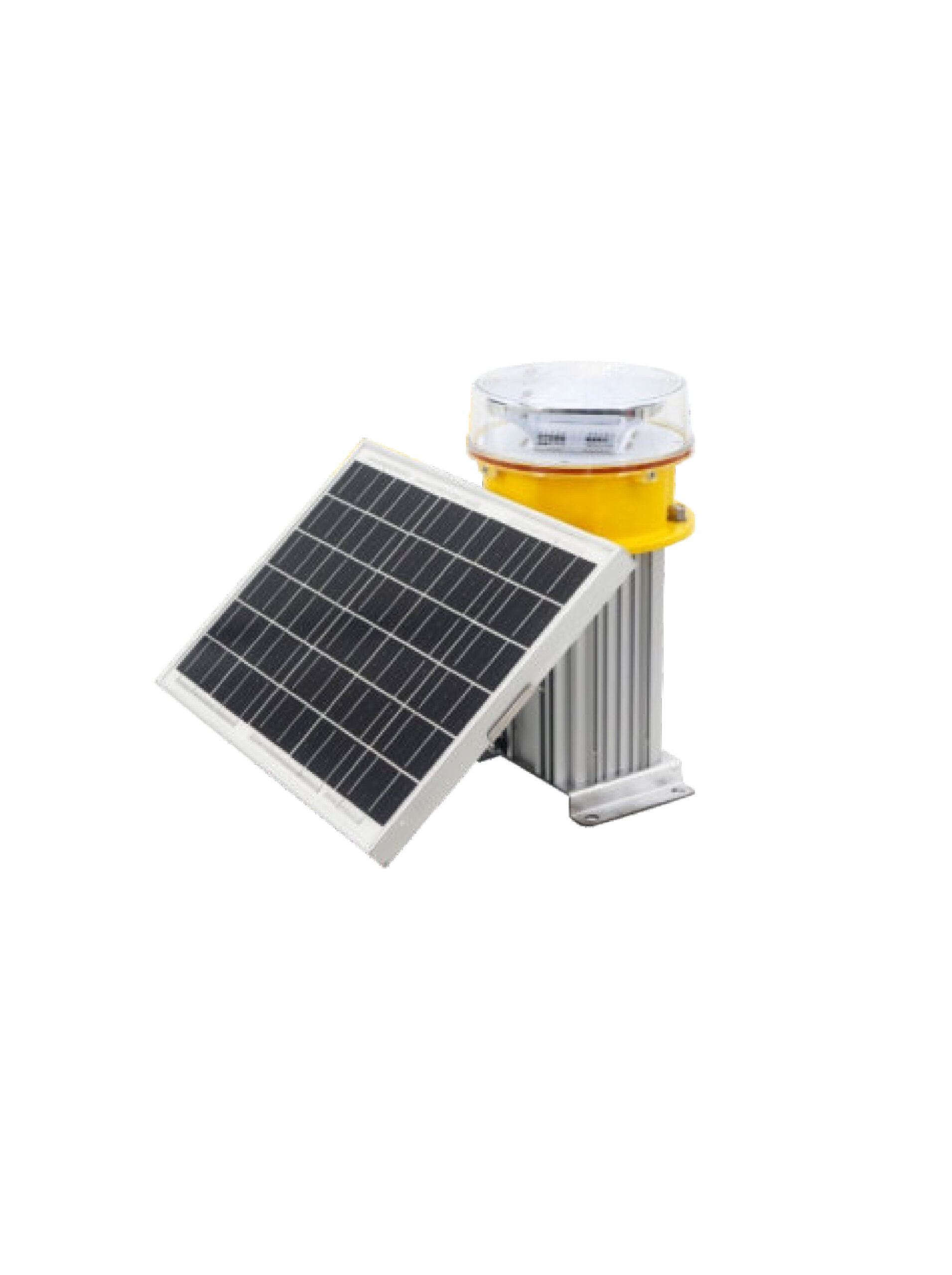

CN1015-T – LED Solar Obstruction Light
Price on request

Operating Voltage: DC12V (Solar Powered)
Power consumption: 10W
Flashing frequency: 20-60 times/min
Light intensity: 2000cd (±25%)
Emitting color: RED
Beam angle: 360° horizontal, more than 3° vertical beam spread
Overall size(mm): 550mm×530mm×290mm

DOWNLOAD SPEC SHEET

CN1011/L-T – LED Solar Obstruction Light
Price on request

Operating Voltage: DC6V(Solar Powered)
Power consumption: 5W
Flashing frequency: constant light
Light intensity: 32.5cd
Life span: 100,000 hours
Emitting color: RED
Beam angle: 360° horizontal,more than 3° vertical beam spread
Overall size(mm): 195mm×195mm×393mm

DOWNLOAD SPEC SHEET

CN1011/LTZ – LED Solar Obstruction Light
Price on request

Operating Voltage: DC6.5V (Solar Power)
Power consumption: 3W
Flashing frequency: 20-60 times/min
Light intensity: 32.5cd (±25%)
Emitting color: RED
Beam angle: 360° horizontal, more than 3° vertical beam spread
Overall size(mm): 167mm×162mm

DOWNLOAD SPEC SHEET

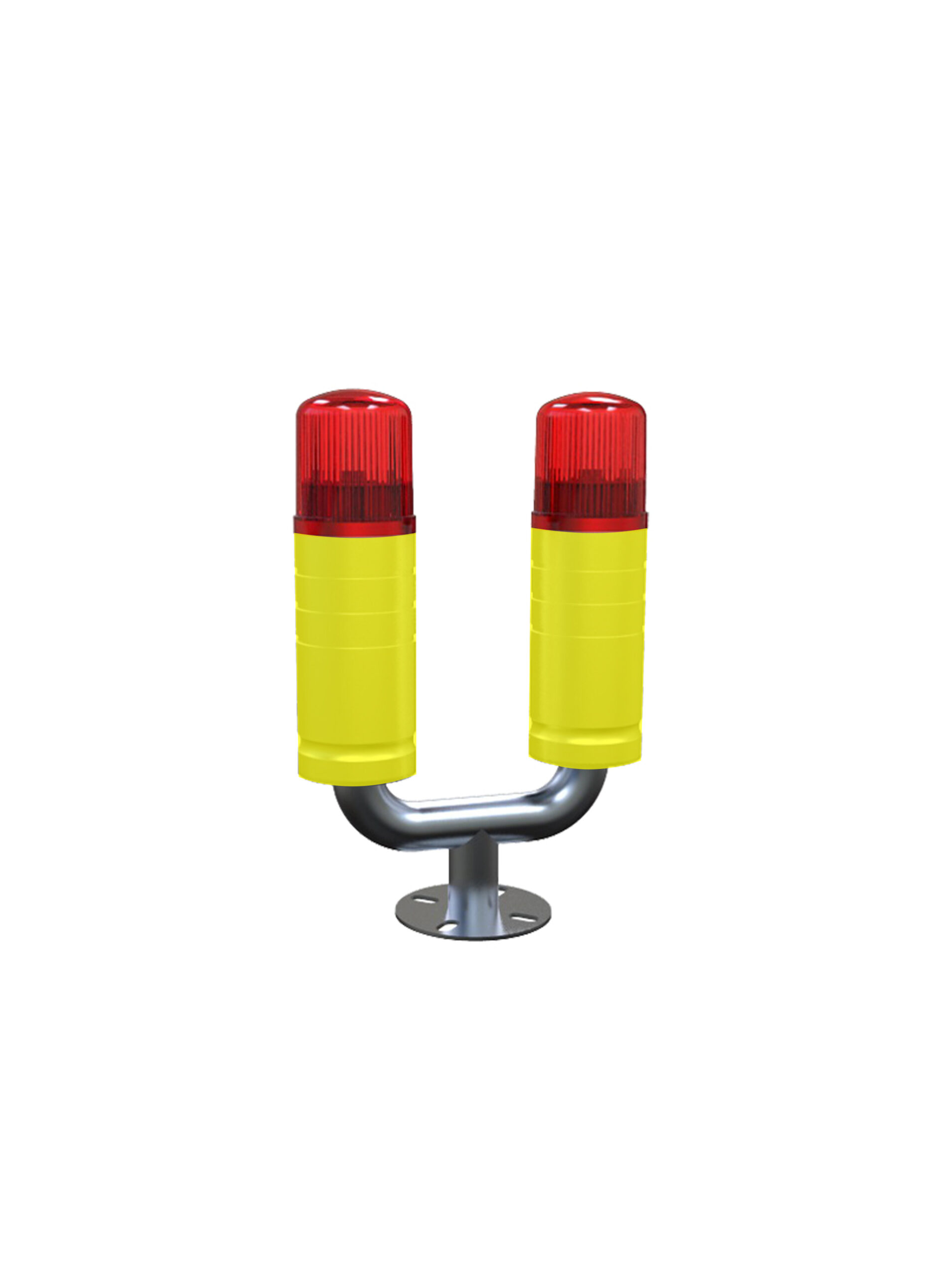

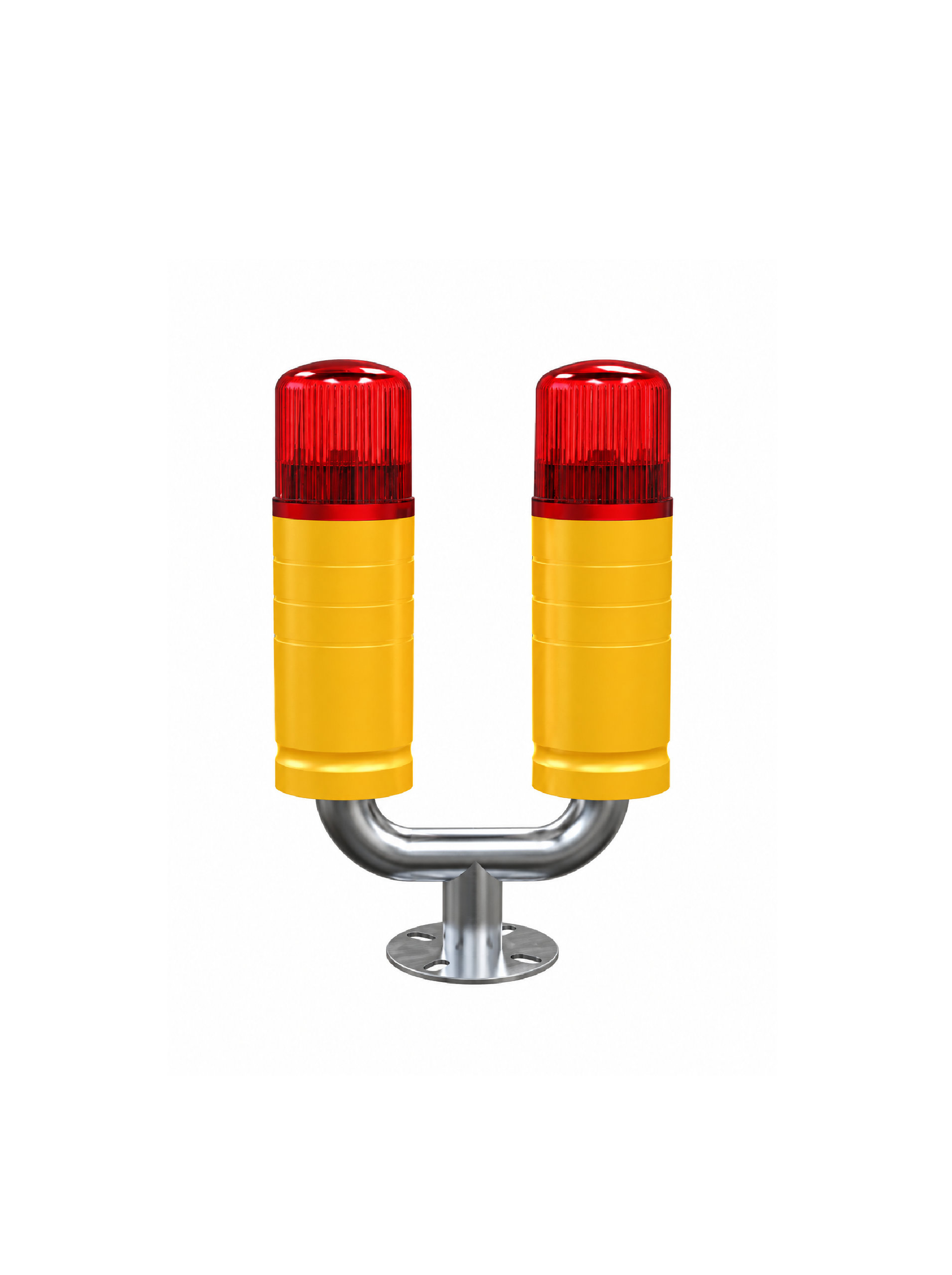

CN1011/D – LED Solar Dual Obstruction Light
Price on request

Operating Voltage: DC6.5V (Solar Power)
Power consumption: 3W
Flashing frequency: 20-60 times/min
Light intensity: 32.5cd (±25%)
Emitting color: RED
Beam angle: 360° horizontal, more than 3° vertical beam spread

DOWNLOAD SPEC SHEET

CN1015 – LED Obstruction Light
Price on request

Operating Voltage: AC90-260V
Power consumption: 10W
Flashing frequency: 40 times/min GPS synchronization
Light intensity: 2000cd (±25%)
Emitting color: RED/WHITE
Beam angle: 360° horizontal,more than 3° vertical beam spread
Method of synchronization: Same power supply voltage signal mode
Overall size(mm): 210mm×140mm

DOWNLOAD SPEC SHEET

CN1015S – LED Obstruction Light
Price on request

Input Voltage: DC12V
Power consumption: 10W
Flashing frequency: 20 – 60 times/min GPS synchronization
Light intensity: 2000cd (±25%)
Emitting color: RED
Beam angle: 360° horizontal,more than 3° vertical beam spread
Method of synchronization: Same power supply voltage signal mode
Overall size(mm): 195mm×195mmx393mm

DOWNLOAD SPEC SHEET

CN1015/R – LED Obstruction Light
Price on request

Operating Voltage: AC90-260V
Power consumption: 10W
Flashing frequency: 20 times/min
Light intensity: 2000cd(±25%)
Emitting color: RED
Beam angle: 360° horizontal,more than 3° vertical beam spread
Method of synchronization: Same power supply voltage signal mode
Overall size(mm): 210mm×140mm

DOWNLOAD SPEC SHEET

CN1016 – LED Obstruction Light
Price on request

Operating Voltage: AC90-260V
Power consumption: 10W
Flashing frequency: 40 times/min GPS synchronization
Light intensity: 2000cd(±25%)
Emitting color: RED
Beam angle: 360° horizontal,more than 3° vertical beam spread
Method of synchronization: Same power supply voltage signal mode
Overall size(mm): 210mm×140mm

DOWNLOAD SPEC SHEET

CN1015/Type A – LED Obstruction Light
Price on request

Operating Voltage: AC90-260V
Power consumption: 40W(daylight)
Flashing frequency: 40times/min
Light intensity: 20000cd(white)
Emitting color: White
Beam angle: 360° horizontal,more than 3° vertical beam spread
Method of synchronization: Same power supply voltage signal mode
Overall size(mm): 268mm×206mm

DOWNLOAD SPEC SHEET

CN1015/Type B – LED Obstruction Light
Price on request

Operating Voltage: AC90-260V
Power consumption: 40W(daylight) / 10W(night)
Flashing frequency: 40times/min
Light intensity: 20000cd(white) / 2000cd(night)
Life span: 100,000 hours
Emitting color: White/Red
Beam angle: 360° horizontal,more than 3° vertical beam spread
Method of synchronization:Same power supply voltage signal mode

DOWNLOAD SPEC SHEET

CN1011/L – LED Obstruction Light
Price on request

Operating Voltage: AC90-260V
Power consumption: 5W
Flashing frequency: constant light
Light intensity: 32cd
Emitting color: RED
Beam angle: 360° horizontal,more than 3° vertical beam spread
Overall size(mm): 150mm×230mm

DOWNLOAD SPEC SHEET

CN1011 – LED Obstruction Light
Price on request

Operating Voltage: AC90-260V
Power consumption: 5W
Flashing frequency: constant light
Light intensity: 32cd
Emitting color: RED
Beam angle: 360° horizontal,more than 3° vertical beam spread

DOWNLOAD SPEC SHEET

CN1011/LS – LED Obstruction Light
Price on request

Operating Voltage: AC90-260V
Power consumption: 10W
Flashing frequency: constant light
Light intensity: 32cd
Emitting color: RED
Beam angle: 360° horizontal, more than 3° vertical beam spread
Overall size(mm): 150mm×230mm

DOWNLOAD SPEC SHEET

CN1017 – LED Obstruction Light
Price on request

Operating Voltage: AC90-260V
Power consumption: 100W
Flashing frequency: 40-60times/min
Light intensity: Background Luminance
Light Intensity: 50Lux 2000cd(±25%)/ 500Lux 20000cd(±25%)
Emitting color: White
Beam angle: 90° horizontal,3-7° vertical beam spread
Method of synchronization:Same power supply voltage signal mode

DOWNLOAD SPEC SHEET

CN25 – LED Solar Obstruction Light
Price on request

12V
1 amp
12 WATT
20 Hours Standby Time
10cd
DOWNLOAD SPEC SHEET
